POTTINGER

https://www.poettinger.at/en_uk/
Call Us
POTTINGER

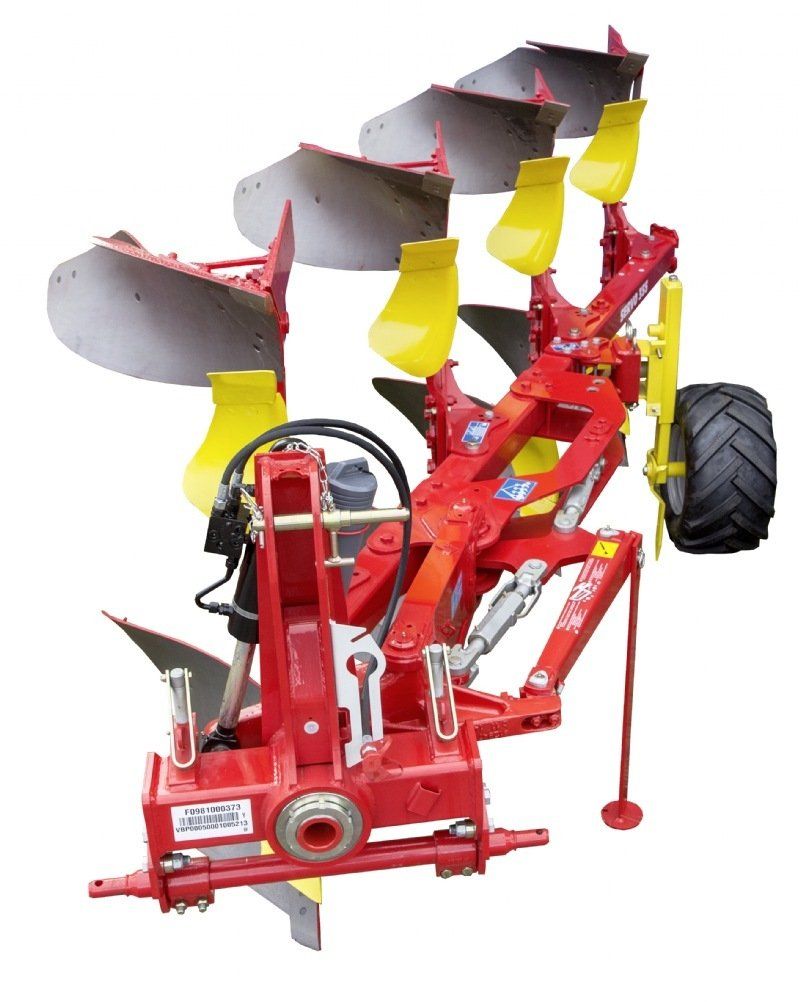

SERVO 35 NOVA FOUR FURROW PLOUGH
  • 36 W mouldboards
  • V3 Skimmers
  • 16" shares with reversible points
  • Hydraulic dampened depth wheel
  • Manual variwidth
  • Beam dimensions 120 x 120 mm
  • Under frame clearance 80 cm
  • Interbody distance 95 cm
  • Leg dimensions 80 x 30 mm
  • Power requirement 80 - 140 HP
  • Weight 1388 kg
Call Us
POTTINGER

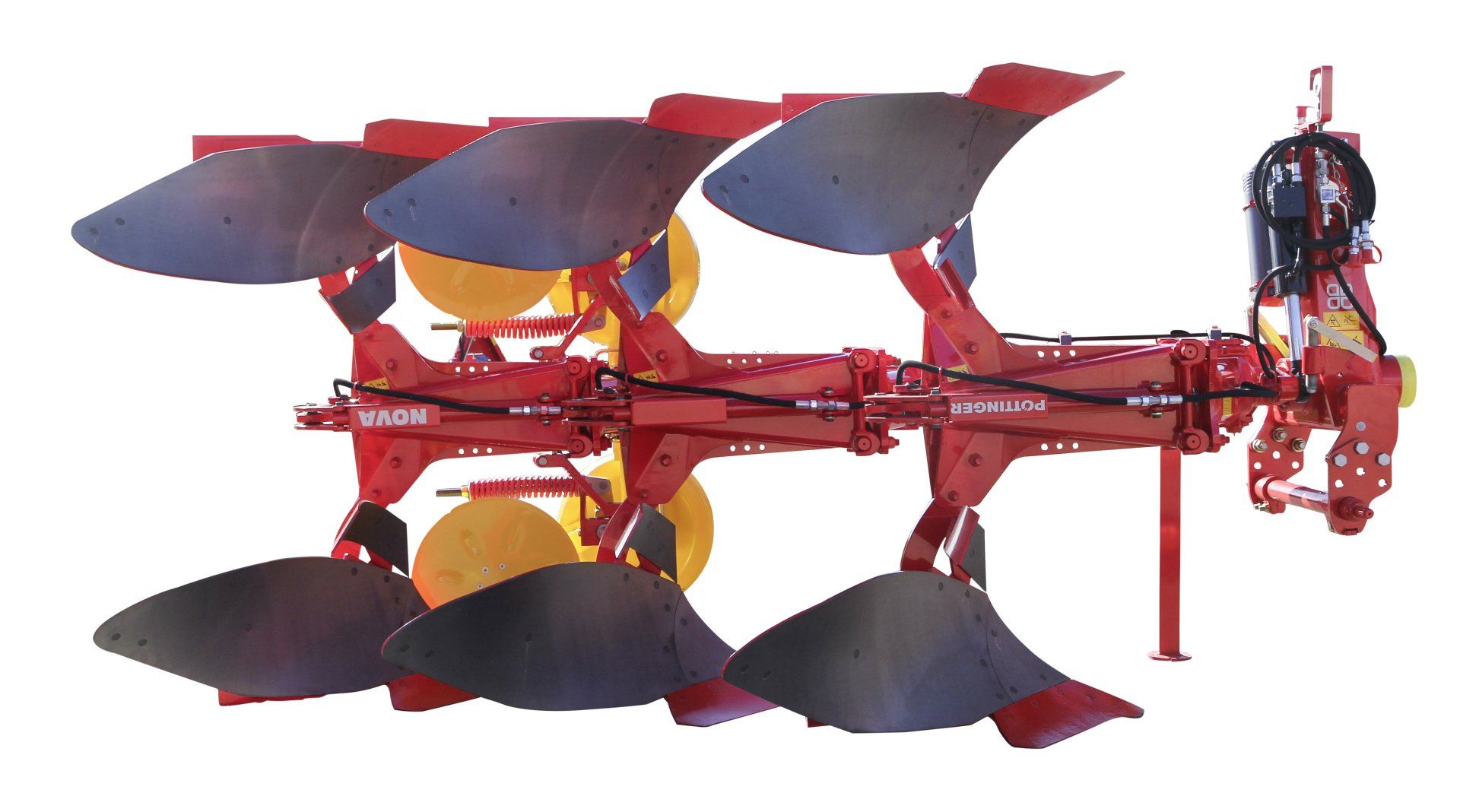

SERVO 25 NOVA FOUR FURROW PLOUGH
  • Beam dimensions 100 x 100 mm
  • Under frame clearance 80, 74 cm
  • Interbody distance 85, 95 cm
  • Leg dimensions 80 x 30 mm
  • Body spacing and furrow widths 85 (32-36-40-43) 95 (33-37-41-45) cm
  • Power requirement 50 - 120 HP
  • Weight 1230 kg
Call Us
POTTINGER

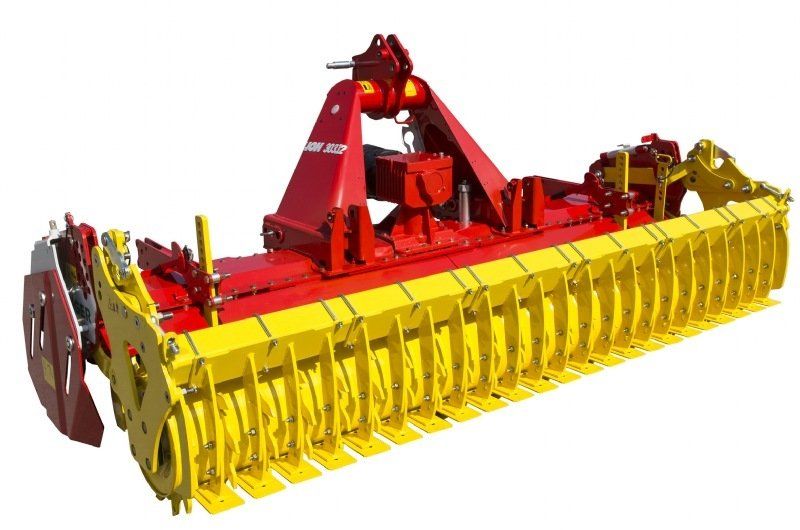

LION 303 MEDIUM DUTY POWER HARROW
  • Working width 3 m
  • Rotor 10 pcs.
  • PTO Input Speed 1000 rpm
  • Rotor speed 342 rpm
  • Tine dimensions 18 x 340 mm
  • Power requirement 90 - 180 HP
  • Transport width 3 m
  • Weight of basic version 1070 kg
  • Weight cage roller Ø 420 mm 195 kg
  • Weight cage roller Ø 540 mm 325 kg
  • Weight toothed packer roller Ø 420 mm 365 kg
  • Weight toothed packer roller Ø 500 mm 525 kg
  • Weight toothed packer roller Ø 550 mm 547 kg
  • Weight crumbling packer roller Ø 525 mm coated 520 kg
  • Weight pack ring roller Ø 550 mm coated 550 kg
  • Weight toothed packer roller Ø 500 mm coated 528 kg
  • Weight toothed packer roller Ø 550 mm coated 558 kg
  • Weight prism packer roller Ø 500 mm coated; 12,5 cm row spacing 560 kg
  • Weight prism packer roller Ø 500 mm coated; 15 cm row spacing 530 kg
  • Weight rubber packer roller Ø 585 mm coated 575 kg
Call Us
POTTINGER

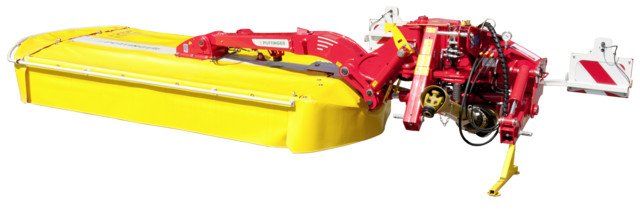

NOVACAT 302 ED REAR DISC MOWER
  • Mounting-Rear three-point
  • Mounting category-Cat, III / 2
  • Breakaway device-Mechanical breakaway device
  • Weight-1260 kg
  • Working width-3,04 m
  • Transport height-3,8 m
  • Driveline speed with grass header-1000 rpm
  • PTO Input Speed-1000 rpm
  • Mower discs-7 pcs.
  • Mower blades-14 pcs.
  • Power requirement-80 hp
  • Coverage-3 ha/h
  • Hectares/acres per hour-3 ha/h
  • Wear skids-5 pcs.
  • High-cut skids-5 pcs.
  • High-cut skids inside / outside-1 pcs.
  • Swath width with conditioner min-1,9 m
  • Swath width with conditioner max-2,7 m
  • Swath forming / Conditioner-Steel tine conditioner
  • Swath forming/conditioner-Steel tine conditioner
Call Us
POTTINGER

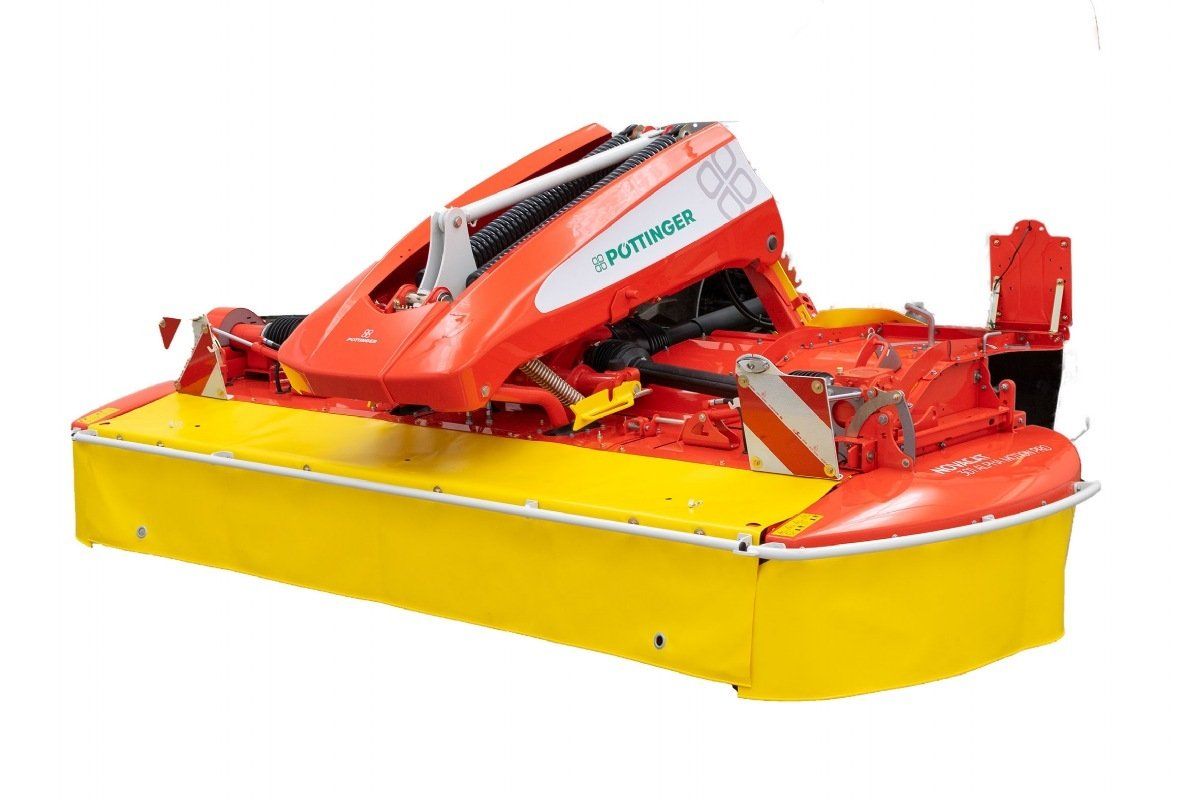

NOVACAT 301 ALPHA MOTION ED PRO FRONT MOUNTED MOWER
  • Mounting-Front
  • Weight-1145 kg
  • Working width-3,04 m
  • Transport width-2,98 m
  • PTO Input Speed-1000 rpm
  • Direction of rotation-Right
  • Mower discs-7 pcs
  • Mower blades-14 pcs
  • Power requirement-70 HP
  • Hectares/acres per hour-3 ha/h
  • Wear skids-5 pcs
  • High-cut skids-5 pcs
  • High-cut skids inside / outside-1 pcs
  • Suspension-Counter-springs
  • Swath width with conditioner min-1,6 m
  • Swath width with conditioner max-2,5 m
  • Swath forming/conditioner-Steel tine conditioner
  • Conditioner rpm-900 rpm
