TEAGLE

https://www.teagle.co.uk/en-gb/
Call Us
TEAGLE

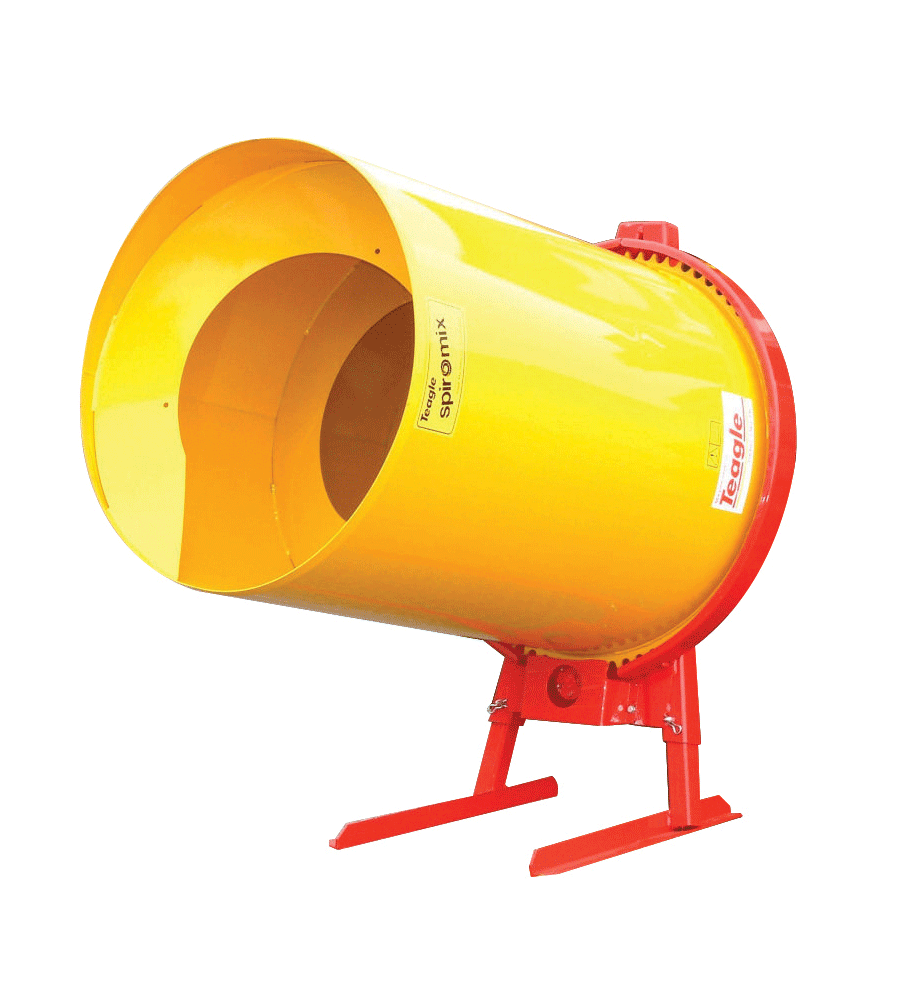

SPIROMIX 200H
TRACTOR MOUNTED CONCRETE MIXER
  • Minimum tractor size 40kW / 50HP
  • Linkage Cat 2
  • Drum Volume 560 litres (20 cu.ft.)
  • Approx. Mix Volume 280 litres (10 cu.ft.)
  • Loading Height to Drum Lip 57cm (22 in)
  • Weight Empty 190 kg (420 lb
  • Approx. Laden Weight 815 kg (1790 lb)
  • Drum Diameter 82 cm (32 in)
  • Height Overall with machine on ground 111 cm (43 in)
Call Us
TEAGLE
XT48 FERTILISER SPREADER
  • Implement Linkage Cat. 2
  • Capacity (Ltr.) 1300
  • Loading Height 128cm
  • Width 192cm
  • Length 129cm
  • Unladen Weight 271kg
  • Bout Width Up to 12m
Call Us
TEAGLE
CENTERLINER SX3 FERTILISER SPREADER
  • Working Width 6-24M
  • Controls Hydraulic
  • Capacity (Ltr.) 1900
  • Width 2.6m
  • Length 1.6m
  • Loading Height 1.26m
  • Unladen Weight 490kg
  • Mudguards Standard
  • Rear Light Kit Standard
  • Bout Width Up to 24m
Call Us
TEAGLE
FULLY OFFSET PASTURE TOPPER
  • Specification 8 Offset
  • Implement Linkage Cat. 2
  • Working Width 2.4m
  • Width for transport - 5'11" (1.8m)
  • Length Overall for transport - 11'5" (3.5m)
  • Cutting Width 8'"0 (2.4m)
  • Cutting Height ½" - 4" (12mm - 100mm)
  • Weight 535kg (1180lb)
  • PTO power required 80HP
  • Offset Fully Offset
  • Application Pasture Topping
  • Mounting Position Rear
Call Us
TEAGLE

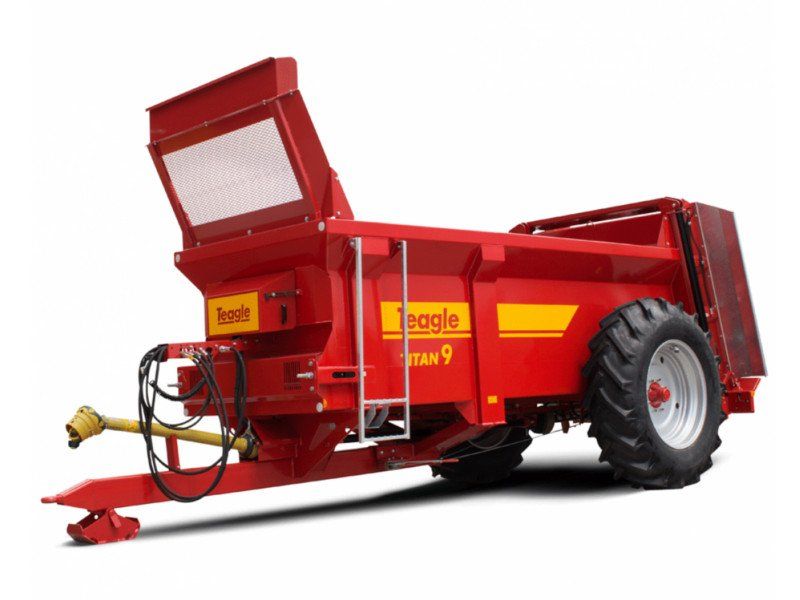

TITAN 9 SPREADER
  • Capacity (Level) 6.5M3
  • Capacity (Heaped) 9.4M3
  • Capacity with greedy boards (Heaped) 11.3M3
  • Overall Length  7.0M
  • Overall width (with standard tyres)  2.6M
  • Overall Height  3.2M
  • Loading Height (with std. wheels) 2.14M
  • Internal Length 4.31M
  • Internal width 1.5M-1.7M
  • Internal height 1.0M
  • Standard tyre size 18.4/15X34
  • Unladen Weight 3380KG
  • Steel thickness (floor / sides) 4MM/4MM
  • Axle Size 80MM X 80MM
  • Brake Size / Axle Studs 400mm x 80mm / 8 stud
  • Floor - Chain Diameter 14MM
  • Bed drive shaft diameter 55MM
  • Minimum recommended HP 100HP

Call Us
TEAGLE

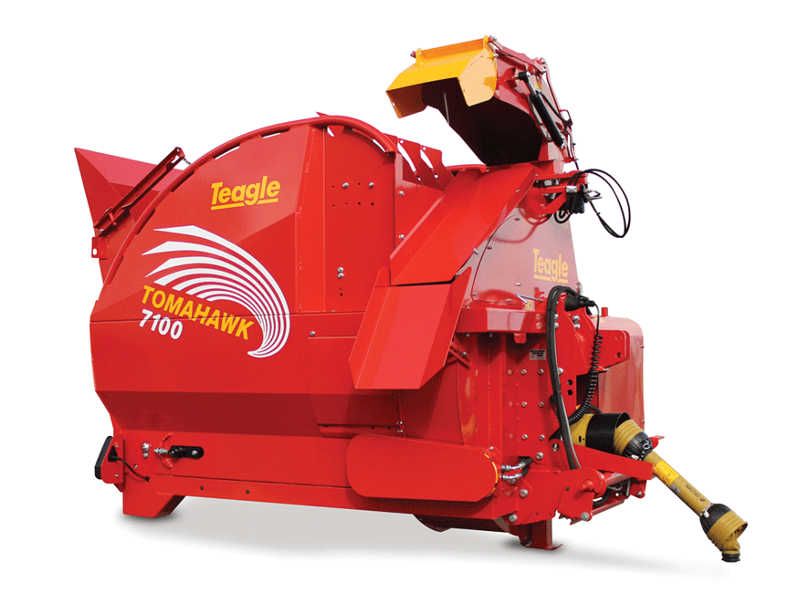

TOMAHAWK 7100
  • Chute Side
  • Dual Chop No
  • Straw Spread
  • No. of crossbeaters
  • Capacity (m³) 3.0
  • No. of 5' round bales Straw x 2 / Silage x 1 (2 when trailed)
  • No. of 8' rectangular bales (4'x3' / 4'x4') 1/1
  • Bale chamber (tailgate down) W x H x D 1.40m x 1.25m x 2.50m
  • Blow distance (max.) 22m
  • Min. tractor PTO 60HP (90HP mounted)
  • Overall width (chute closed) 2.2m (trailed option 2.27m)
  • Overall length (tailgate up) 2.65m (trailed 3.65m)
  • Overall length (tailgate down) 3.80 (trailed 4.80m)
  • Overall height (chute closed) 2.11m / 2.3m
  • Tyre size Trailed option 10.00/75-15.3
  • Oil flow rate (min-max) (l/min) 35-60
  • Feed Baled Silage Yes
  • Feed Clamp Silage Yes
  • Unladen weight (mounted) 1620kg
  • Bed Cubicles / Straw Processing No
  • Bed Loose Housing Yes
Call Us
TEAGLE

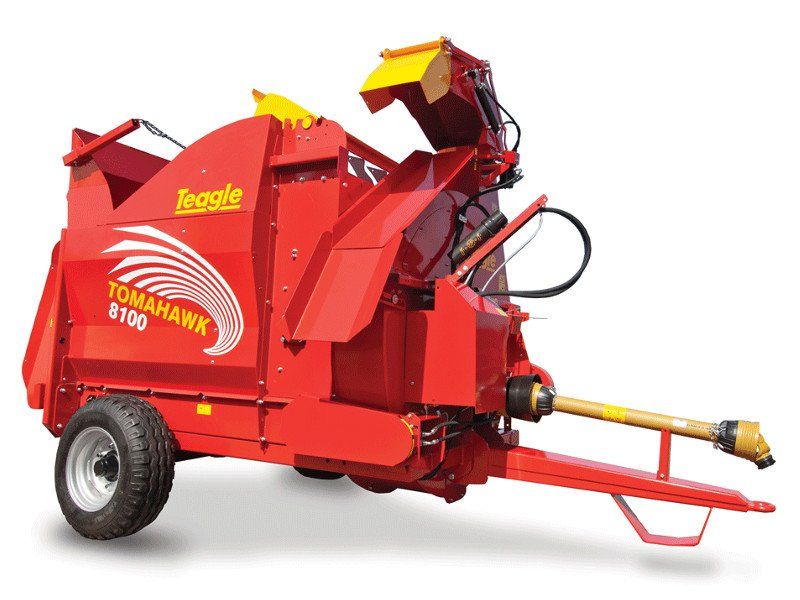

TOMAHAWK 8100
  • Chute Side
  • Dual Chop No
  • Straw Spread
  • No. of crossbeaters 1
  • Capacity (m³) 3.5
  • No. of 5' round bales 2
  • No. of 8' rectangular bales (4'x3' / 4'x4') 1/1
  • Bale chamber (tailgate down) W x H x D 1.55m x 1.25m x 2.98m
  • Blow distance (max.) 22m
  • Min. tractor PTO 60HP
  • Overall width (chute closed) 2.27m
  • Overall length (tailgate up) 4.14m
  • Overall length (tailgate down) 5.38m
  • Overall height (chute closed) 2.41m
  • Unladen Weight 1880kg
  • Tyre size 10.00/75-15.3 (options available)
  • Oil flow rate (min-max) (l/min) 35-60
  • Feed Baled Silage Yes
  • Feed Clamp Silage Yes
  • Bed Cubicles / Straw Processing No
  • Bed Loose Housing Yes
